Fabric properties
Transparent
Polyester Trevira CS (50% bioactive)
130 g/m²
0.33 mm
335 cm
340 cm
340 cm
Features / Technical properties
5
Alpha-w = 0.20
Flame retardant
Antimicrobial (Trevira CS Bioactive)
Applicable in humid areas
Suitable for Wave
Digital printing
Oeko-Tex, Cradle to Cradle
Special colours from 520 m
Washing instructions
-1%
-1.5%
-2%
-0.5%
-1%
Optical and solar coefficients (± 5%, DIN EN 410)
| Colour |
|
|
|
|
|
|
|
|---|---|---|---|---|---|---|---|

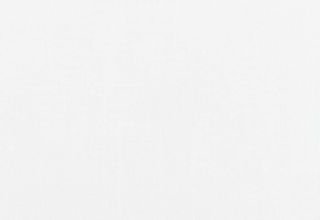

| Colour 400 | Tv(%) 49.0 | Ts(%) 49.3 | Rs(%) 43.7 | As(%) 7.0 | Tuv(%) 41.2 | Fc() 0.68 | gtot() 0.49 |

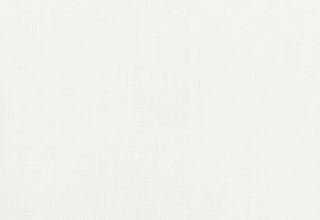

| Colour 410 | Tv(%) 55.3 | Ts(%) 55.1 | Rs(%) 42.4 | As(%) 2.5 | Tuv(%) 47.4 | Fc() 0.69 | gtot() 0.50 |

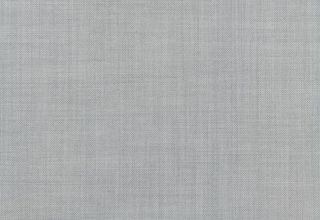

| Colour 429 | Tv(%) 37.8 | Ts(%) 46.7 | Rs(%) 35.4 | As(%) 17.9 | Tuv(%) 34.3 | Fc() 0.73 | gtot() 0.53 |
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1
Classification of solar shading devices (DIN EN 14501:2021)
| Colour | Glare control | Privacy at night | Sight contact with the outside | Daylight utilisation |
|---|---|---|---|---|
| Colour 400 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 4 |
| Colour 410 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 4 |
| Colour 429 | Glare control 0 | Privacy at night 0 | Sight contact with the outside 2 | Daylight utilisation 3 |
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect
Downloads
On request:
IMO
