Multiscreen
1%, 5%, 10%

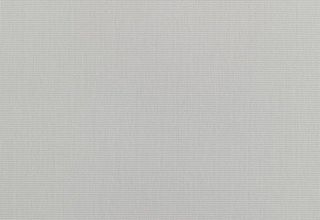

1%
0702
1%
3001

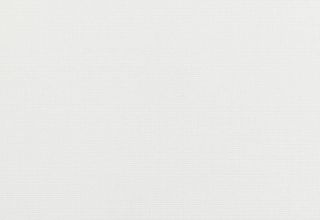

5%
0202

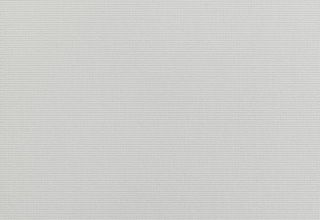

5%
0207
5%

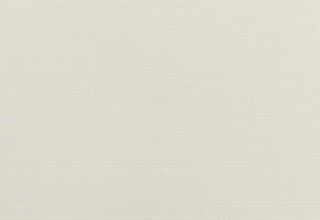

0220
5%

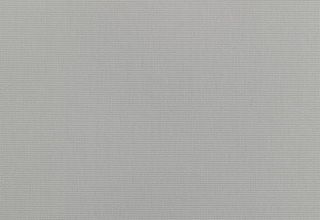

0707

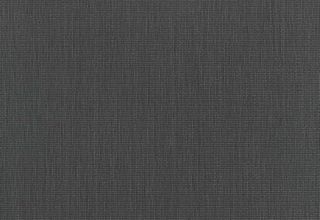

5%
3001
5%

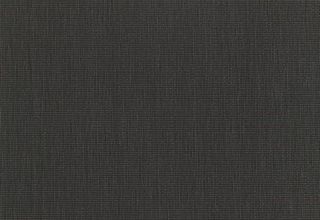

3006
5%

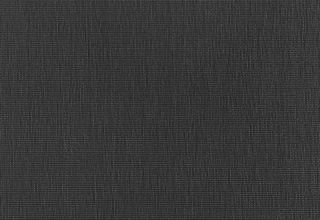

3030
10%

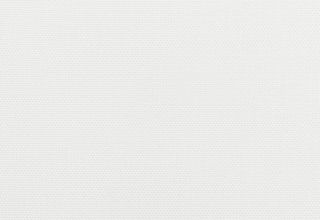

0202
10%
0207
10%
0220

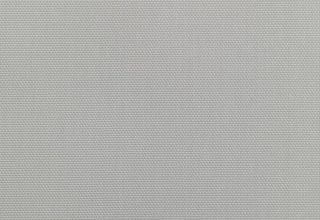

10%
0707
10%
3001
10%
3006

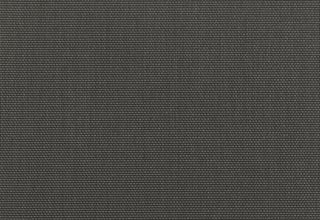

10%

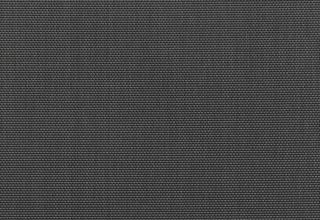

3030

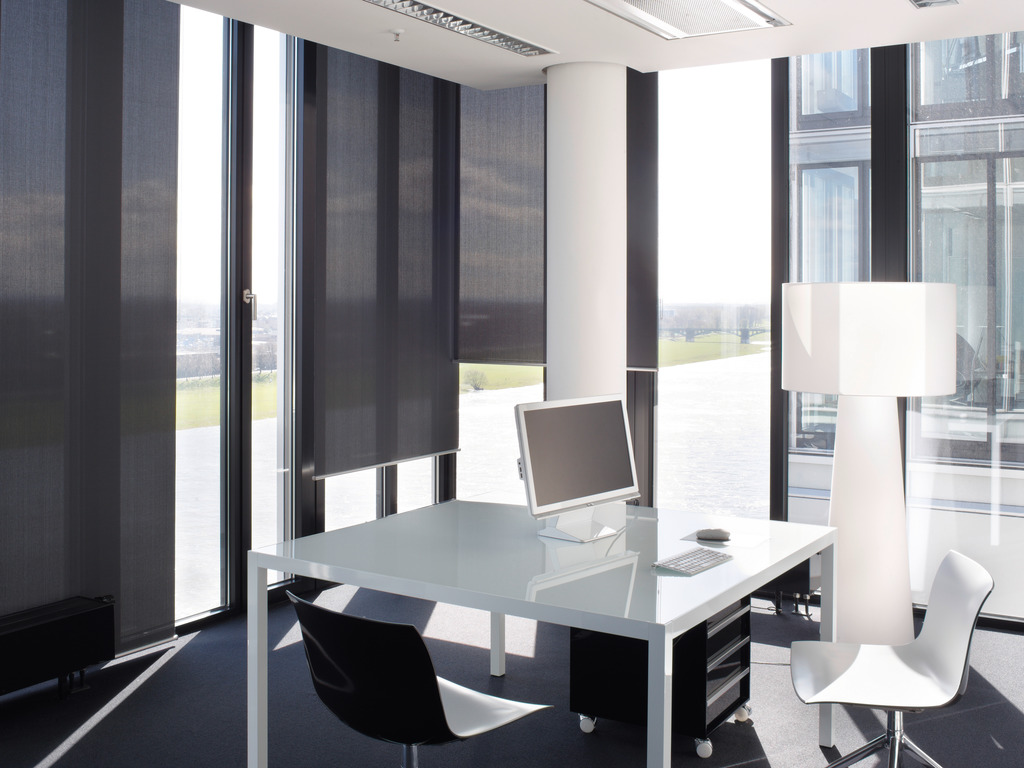

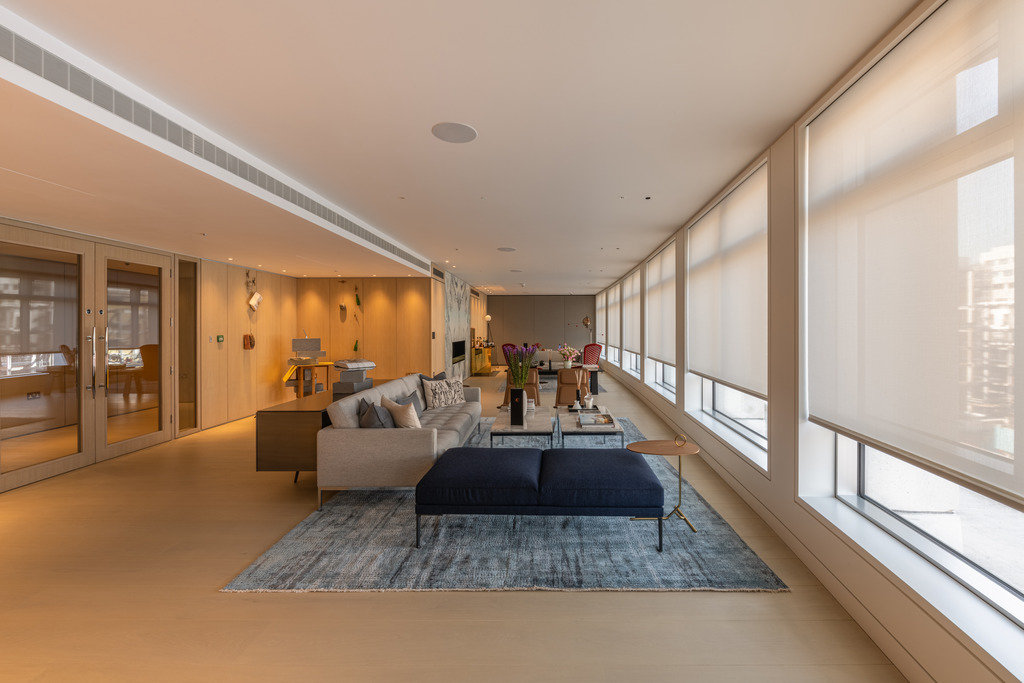

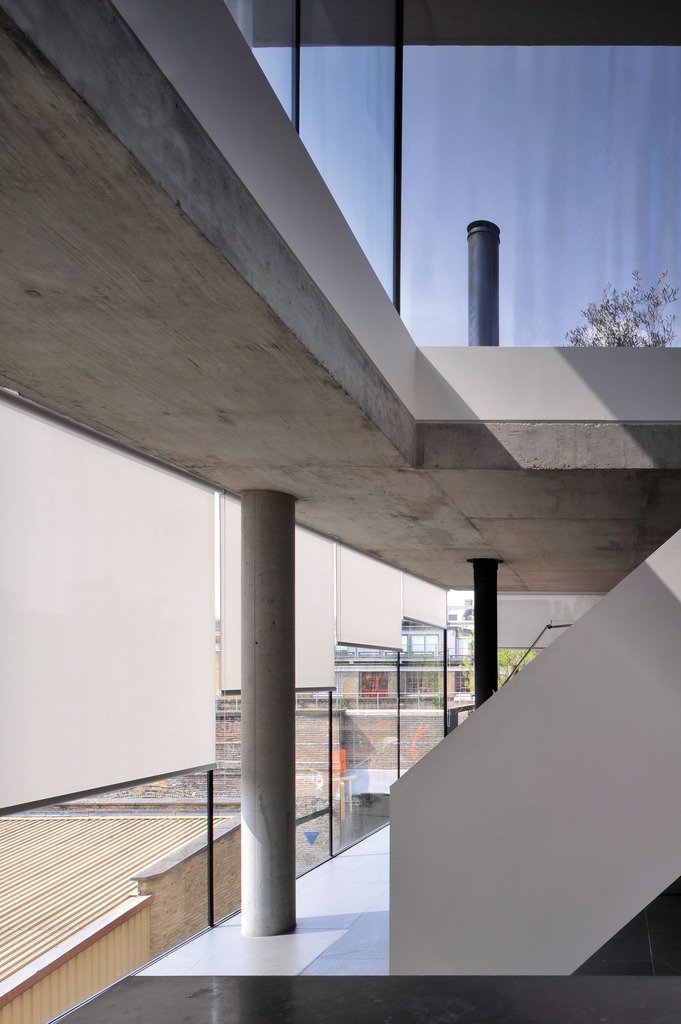

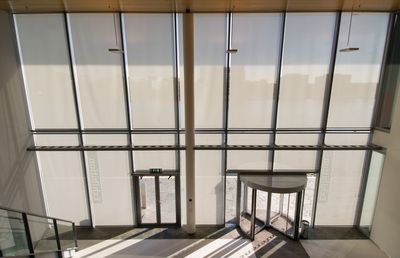

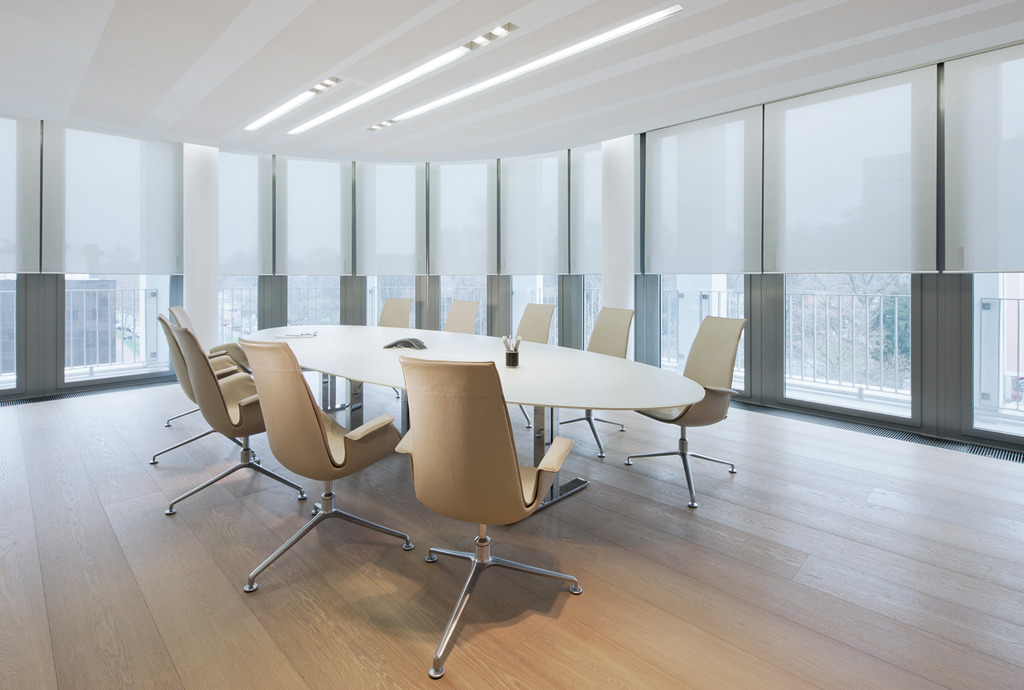

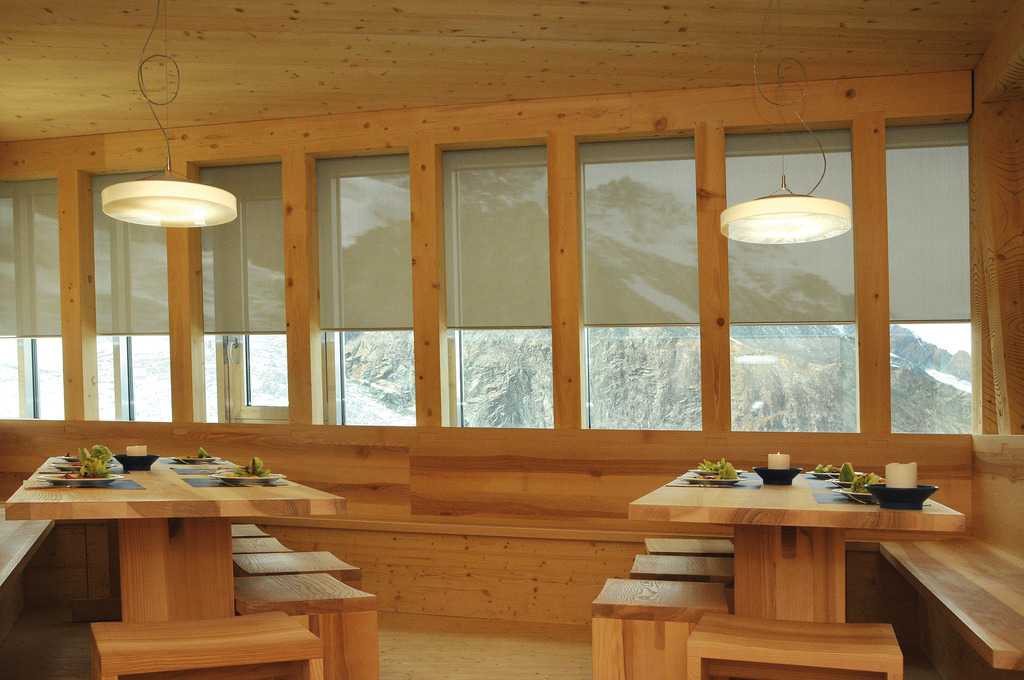

Applications



5%
5%
5%, 10%

Fabric properties

1% 5% 10%
Semi transparent
64% PVC, 36% Glass fibre
440 g/m² 410 g/m² 350 g/m²
0.55 mm 0.55 mm 0.47 mm
245 cm 245 cm 315 cm
250 cm8.9 cm, 12.7 cm, 250 cm320 cm

Features / Technical properties

7-8
Flame retardant
Optimised for workstations
Various openness factors
Applicable in humid areas
Digital printing
Greenguard
Special colours from 10’000 m
Weldable

Washing instructions

Greenguard IMO

Optical and solar coefficients (± 5%, DIN EN 410)

Multiscreen 1%
Colour
Colour 0702 Tv(%) 11.8 Ts(%) 14.0 Rs(%) 47.0 As(%) 39.0 Tuv(%) 0.00 Fc() 0.64 gtot() 0.46

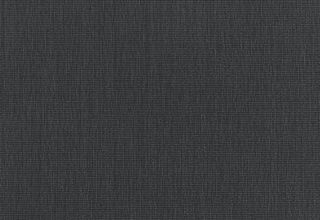

Colour 3001 Tv(%) 2.8 Ts(%) 3.0 Rs(%) 9.0 As(%) 88.0 Tuv(%) 0.01 Fc() 0.89 gtot() 0.64
Multiscreen 5%
Colour
Colour 0202 Tv(%) 20.6 Ts(%) 21.0 Rs(%) 69.0 As(%) 10.0 Tuv(%) 0.05 Fc() 0.50 gtot() 0.36
Colour 0207 Tv(%) 15.8 Ts(%) 17.0 Rs(%) 54.0 As(%) 29.0 Tuv(%) 0.05 Fc() 0.60 gtot() 0.42
Colour 0220 Tv(%) 19.1 Ts(%) 22.0 Rs(%) 62.0 As(%) 16.0 Tuv(%) 0.06 Fc() 0.54 gtot() 0.39
Colour 0707 Tv(%) 12.7 Ts(%) 15.0 Rs(%) 37.0 As(%) 48.0 Tuv(%) 0.06 Fc() 0.71 gtot() 0.50
Colour 3001 Tv(%) 5.6 Ts(%) 6.0 Rs(%) 10.0 As(%) 84.0 Tuv(%) 0.05 Fc() 0.89 gtot() 0.62
Colour 3006 Tv(%) 5.3 Ts(%) 5.0 Rs(%) 7.0 As(%) 88.0 Tuv(%) 0.06 Fc() 0.89 gtot() 0.63
Colour 3030 Tv(%) 5.4 Ts(%) 6.0 Rs(%) 5.0 As(%) 89.0 Tuv(%) 0.04 Fc() 0.89 gtot() 0.64
Multiscreen 10%
Colour
Colour 0202 Tv(%) 28.7 Ts(%) 29.0 Rs(%) 63.0 As(%) 8.0 Tuv(%) 0.11 Fc() 0.54 gtot() 0.39

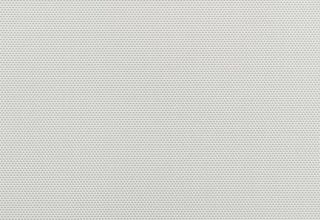

Colour 0207 Tv(%) 23.2 Ts(%) 25.0 Rs(%) 53.0 As(%) 22.0 Tuv(%) 0.11 Fc() 0.61 gtot() 0.44

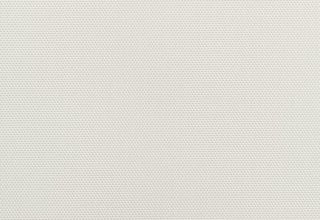

Colour 0220 Tv(%) 26.4 Ts(%) 29.0 Rs(%) 58.0 As(%) 13.0 Tuv(%) 0.10 Fc() 0.57 gtot() 0.41
Colour 0707 Tv(%) 18.3 Ts(%) 21.0 Rs(%) 34.0 As(%) 45.0 Tuv(%) 0.11 Fc() 0.74 gtot() 0.53

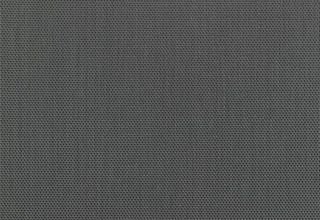

Colour 3001 Tv(%) 10.2 Ts(%) 10.0 Rs(%) 10.0 As(%) 80.0 Tuv(%) 0.10 Fc() 0.89 gtot() 0.64
Colour 3006 Tv(%) 9.3 Ts(%) 10.0 Rs(%) 6.0 As(%) 84.0 Tuv(%) 0.12 Fc() 0.89 gtot() 0.64
Colour 3030 Tv(%) 10.8 Ts(%) 10.0 Rs(%) 5.0 As(%) 85.0 Tuv(%) 0.10 Fc() 0.89 gtot() 0.64
Fc + gtot: Value calculated with glass: 0.72 / Ug = 1.6 W/m² K, DIN EN 13363-1

Classification of solar shading devices (DIN EN 14501:2021)

Multiscreen 1%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 0702 4 2 1 1
Colour 3001 4 2 2 0
Multiscreen 5%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 0202 0 2 0 2
Colour 0207 0 1 2 2
Colour 0220 1 1 2 2
Colour 0707 0 1 2 2
Colour 3001 1 2 2 1
Colour 3006 0 1 3 1
Colour 3030 1 2 2 1
Multiscreen 10%
Colour Glare control Privacy at night Sight contact with the outside Daylight utilisation
Colour 0202 0 0 2 2
Colour 0207 0 1 2 2
Colour 0220 0 1 2 2
Colour 0707 0 0 3 2
Colour 3001 0 1 3 1
Colour 3006 0 0 4 1
Colour 3030 0 1 3 1
0: No effect, 1: Low effect, 2: Medium effect, 3: High effect, 4: Very high effect

Data Sheet

Downloads

Fire Protection
Type B (BS 5867-2)
On request:
SN 198898 10%
NFPA 701
Class 1 (UNI 9176/77) 5-10%
B1 (DIN 4102-1)
M1 (NF P 92-503/5/7)
IMO

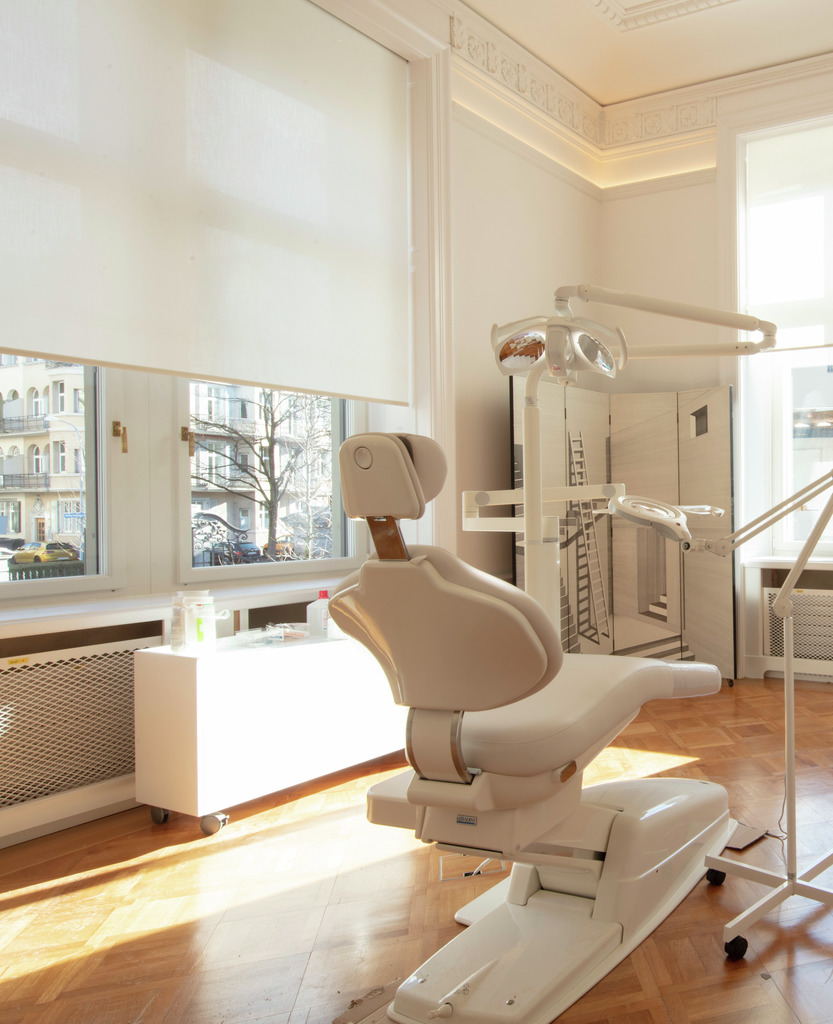

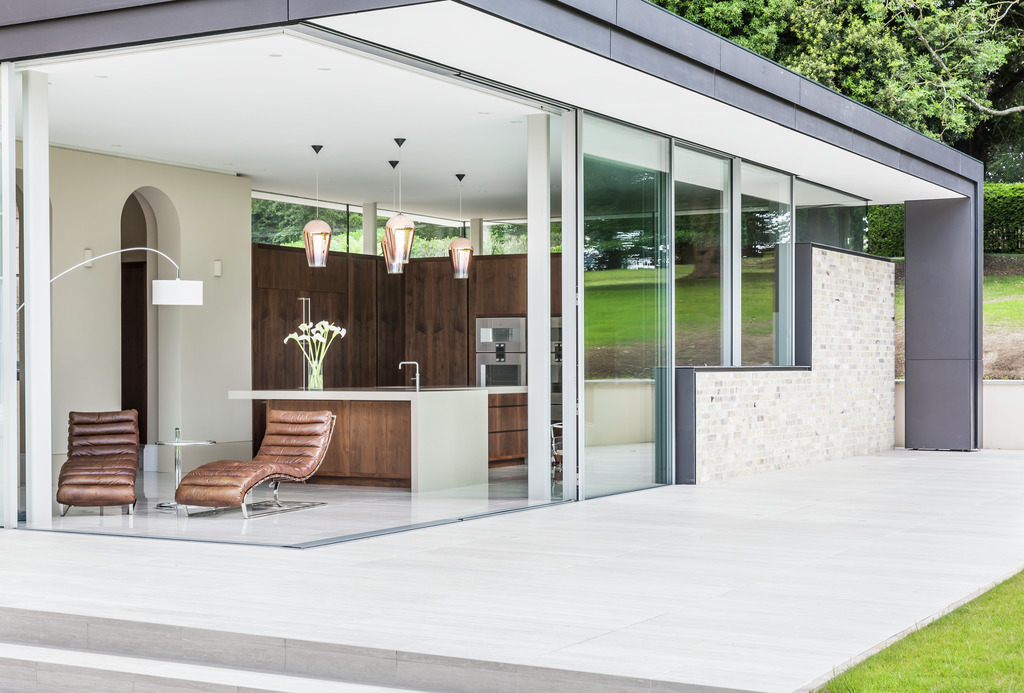

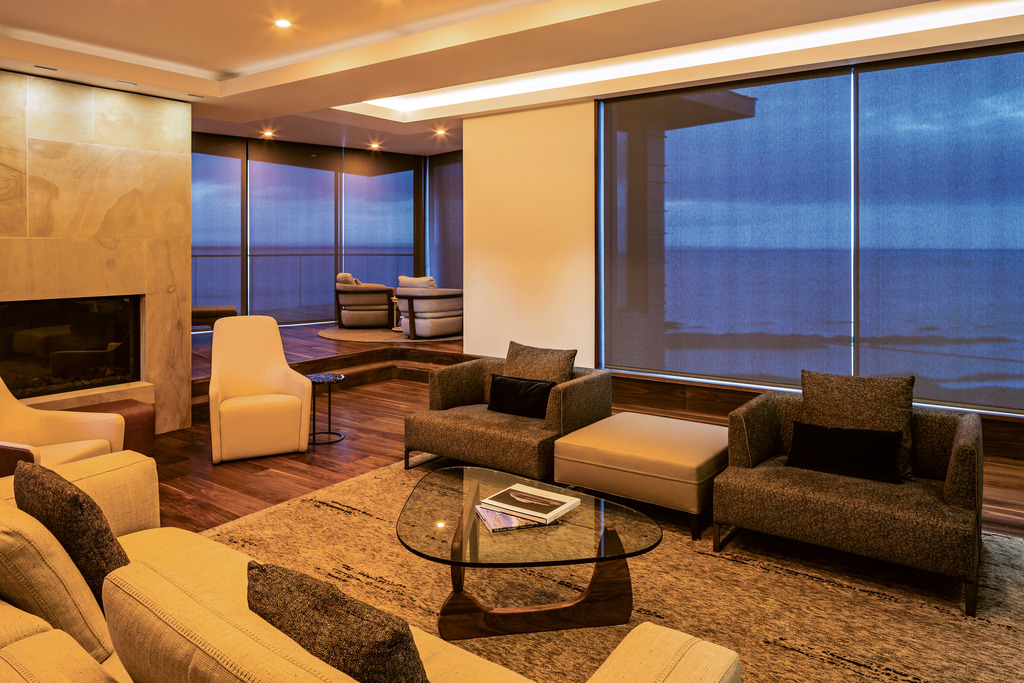

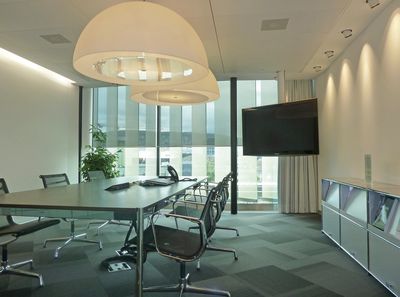

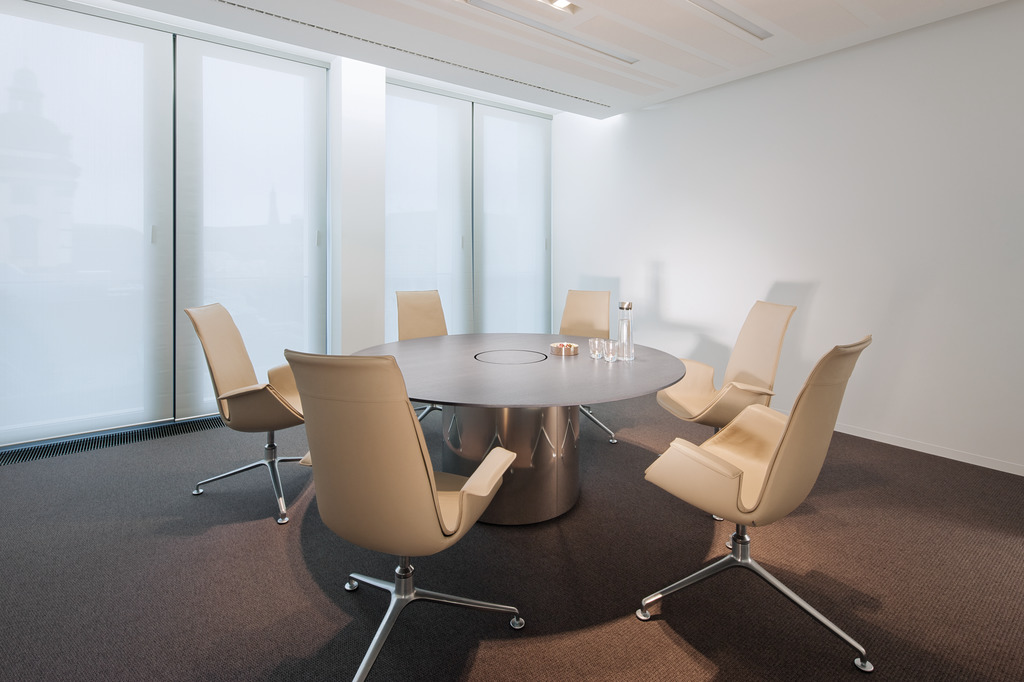

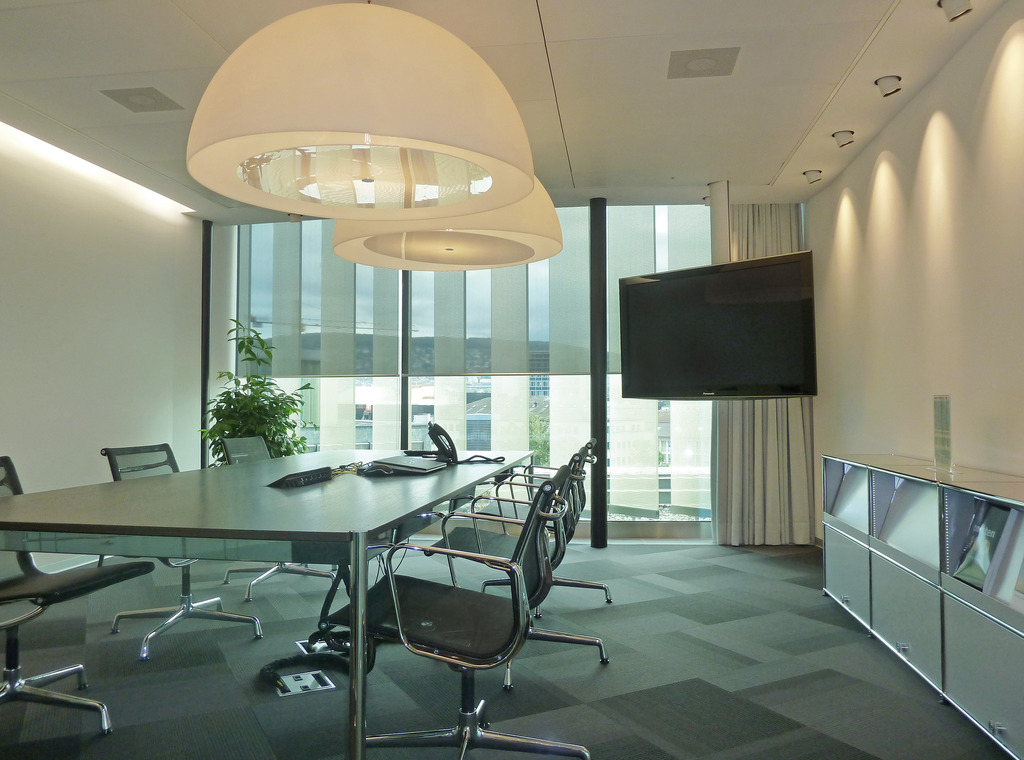

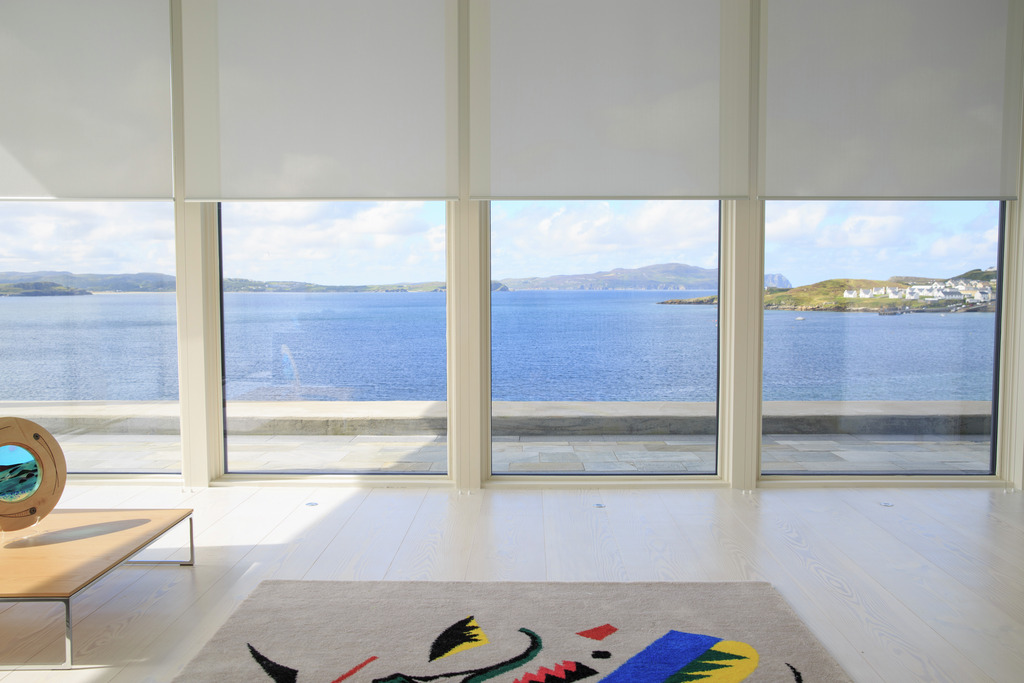

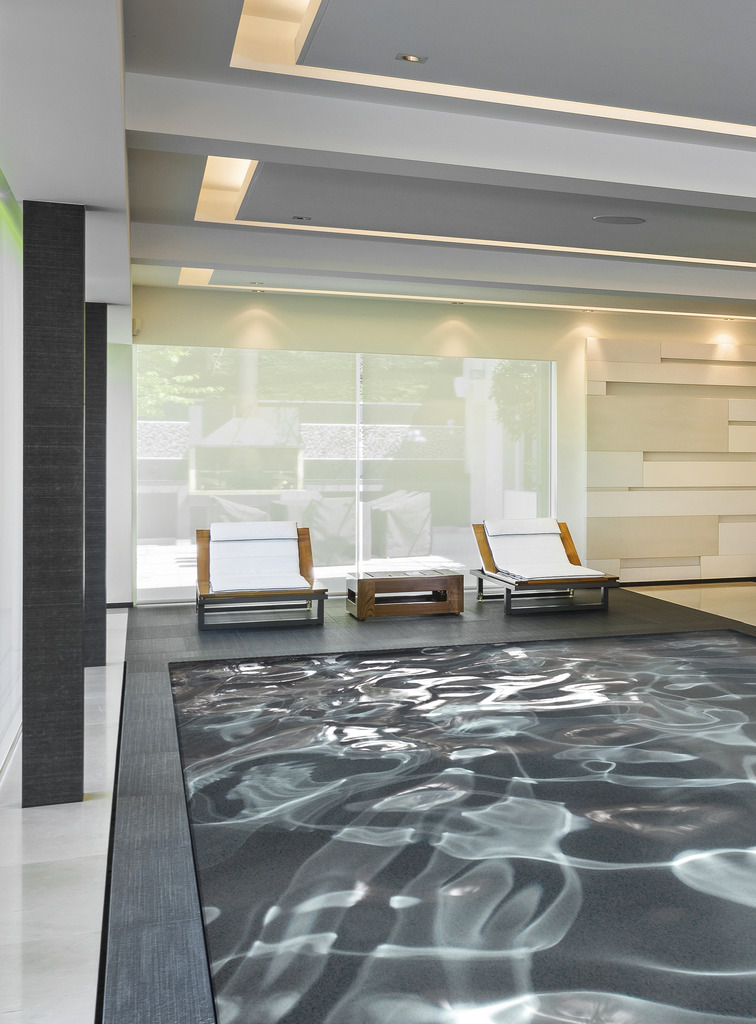

Inspiration
